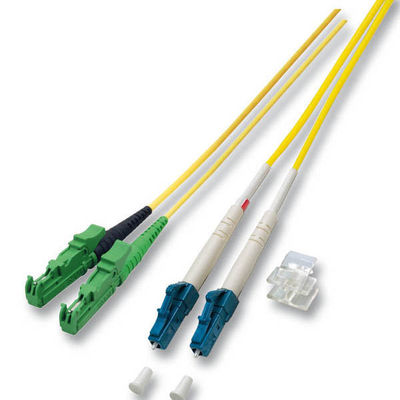

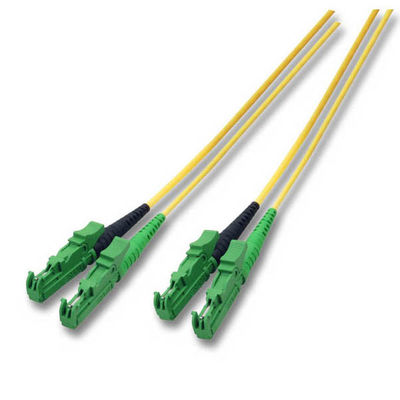

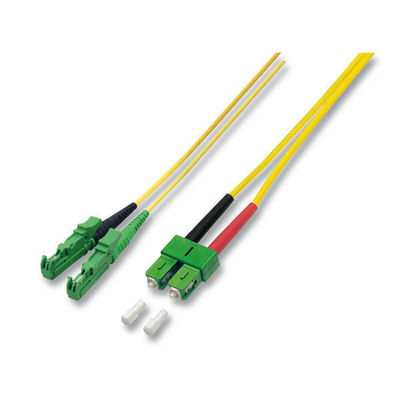

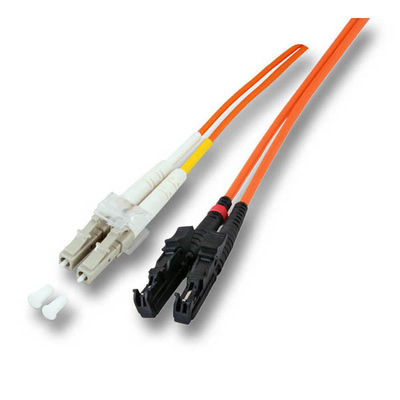

UPC to LC UPC 2 Cores Fiber Optic Jumper VC Orange Jacket 3.0mm E2000

  • UPC to LC UPC 2 Cores Fiber Optic Jumper VC Orange Jacket 3.0mm E2000
  • UPC to LC UPC 2 Cores Fiber Optic Jumper VC Orange Jacket 3.0mm E2000
  • UPC to LC UPC 2 Cores Fiber Optic Jumper VC Orange Jacket 3.0mm E2000
  • UPC to LC UPC 2 Cores Fiber Optic Jumper VC Orange Jacket 3.0mm E2000
Place of Origin China
Brand Name Hangalaxy
Certification CE, FDA, SGS, RoHs, ISO9001:2008
Model Number HGYN-013
Minimum Order Quantity MOQ Saying is 10pc
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 50000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application FTTH Color Orange
Fiber Type G657A1 Connector Type E2000 UPC, LC UPC
Fiber Count 2 Cores Jacket PVC
Cable OD 3.0mm Length 10FT
High Light

fiber optic cable patch cord

,

fiber optic jumper cables
Leave a Message
Product Description

10FT DIN to E2000 APC 2 Cores Fiber Optic Patch Cable LSZH Jacket



Item Description



Hanglaxy manufactures fiber patch cords using the highest quality cable and connectors. All assemblies are tested to ensure low db loss. We stock an extensive range of standard length cables for your convenience. Same day shipment is available for many patch cables! Save time and money by purchasing multi-fiber assembled cables in custom lengths and eliminate the need for field assembly. Hangalaxy manufactures cables using any combination of connectors and cable types. The choice is yours, call with your specific requirements. Fiber optic cables are used in applications where distance and speed are at a premium. Compared to coaxial and twisted pair cables, fiber optic cables have the capability to transmit and receive data at vastly greater distances and speeds. Multimode patch cords are used to connect high speed and legacy networks like gigabit ethernet, fast ethernet and ethernet.



Performance Characteristics Connector



Measure ST Connector SC Connector LC Connector FC Connector
Insertion Loss dB @1310nm ≤0.25 ≤0.25 ≤0.25 ≤0.25
Return Loss dB @1310nm ≥50 ≥50 ≥50 ≥50
Ferrule 2.5mm ceramic 2.5mm ceramic 2.5mm ceramic 2.5mm ceramic
Housing Nickel Brass Composite Composite Nickel Brass
Connector Design EC60874‐10‐1997 IEC61754‐4 IEC61754‐20 IEC61754‐13‐2006



Application



1. Telecom;
2. LAN, WAN;
3. CATV;
4. Sensor Systems;
5. Measuring Technique;
6. Utilities, Railways.



Keyed Characteristic



(1) Ideal for transceiver to transceiver connections;

(2) Robust construction;

(3) PVC, LSZH, OFNR, OFNP cable jacket;

(4) Each patch cord supplied with test certificate and optical results;

(5) Factory terminated under ISO9001 quality control procedures;





UPC to LC UPC 2 Cores Fiber Optic Jumper VC Orange Jacket 3.0mm E2000 0



Fibre Cable Specifications



Cable

Type

Fibre

Category/

Grade

Cable

Jacket Flame

Rating

Cable

Jacket

Color

Bend

Radius

Crush

Resistance

(reversible)

Tensile

Strength

Attenuation

@ 1310 / 1550nm

RoHS

Compliant

2.0mm

Duplex

9/125 mm

SMF / OS2

 LSZH Yellow

ITU

G.657.A1

 1000 N/10cm 300 N 0.35dB / 0.25B Y



Ordering Information



Connector 1
LC Duplex UPC LC
SC Duplex UPC SC
ST Duplex
FC Duplex UPC FC
APC/LC Duplex 8° Angle Polish LC
