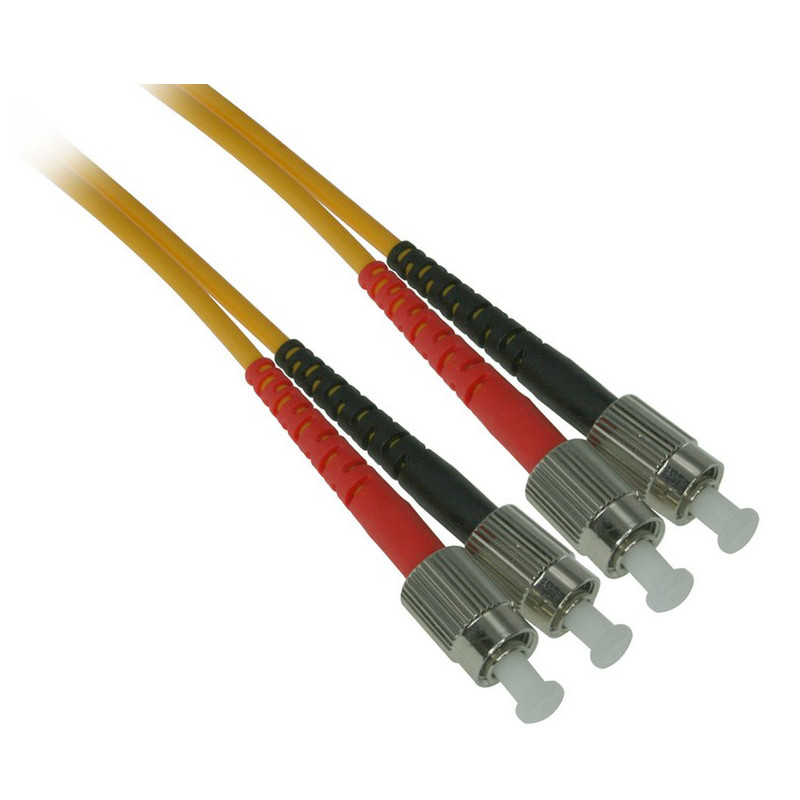

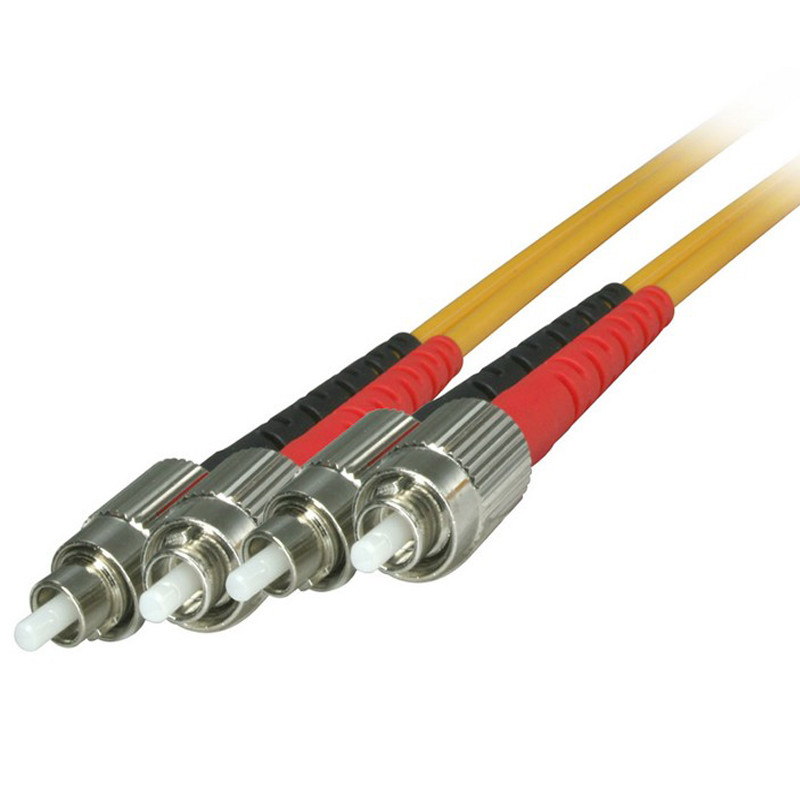

2.0mm FC APC Fiber Optic Patch Cables Single Mode LSZH Yellow Jacket
| Place of Origin | China |
|---|---|
| Brand Name | Hanagalaxy |
| Certification | CE, SGS, FDA, UL |
| Model Number | HGYN-0613 |
| Minimum Order Quantity | MOQ Saying is 10pcs |
| Price | Negotiation By email or Phone Call |
| Packaging Details | 1PCS Each Individual Quality PE Bag |
| Delivery Time | 7-10 Business Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 20000PCS Monthly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Yellow | Cable OD | 2.0mm |
|---|---|---|---|
| Cable Jacket | LSZH | Connector 1 | FC APC |
| Connector 2 | FC APC | Fiber Count | 2F |
| Insertion Loss | 0.35dB | Return Loss | 45dB |
| High Light | optical fiber jumper,fiber optic jumper cables |
||
Product Description
2.0mm Singlemode Fiber Optic FC APC Duplex Patch Cables LSZH Yellow Jacket
FTTH is the installation and use of optical fibre to provide high-speed broadband access to individual buildings or multidwelling units (MDUs). Hanagalaxy Auto-shutter SC patchord is the perfect fit for in-house fiber network with sophisticated dust and laser protection mechanism. Easy to plug in/out, both shutters on connector and adapter can be opened and closed automatically when the connector is being plugged into or pulled out of the adapter, rightly avoiding dust or other contamination and eliminating safety concerns caused by laser contact.
Application
(1) All fiber interconnection;
(2) Telecom Distribution and Local Area Networks;
(3) FTTH and FTTx;
(4) Passive optical networks [ ATM, WDM, Ethernet ];
(5) Broadband, Cable TV(CATV);
(6) Offsets the Singlemode Laser launch from the center of a Multimode fiber;
(7) Available in a variety of connector combinations.
Feature
1. Anti-rotation protection;
2. Compatible with standard SC adapters;
3. Automatic shutter consisting of plastic, as protection against laser radiation as well as dust;
4. Shutter resistant up to 0,5 Watt laser power at a wavelength of 1550 nm;
5. Ø 2.5 mm, Zirconia, axially spring-loaded Ferrule;
6. Cable diameter 3.0mm;
7. 200 Mating cycles;
8. Strain relief≥ 150 N;
9. Operating temperature -40°C to +85°C;
10. Storage temperature -40°C to +85°C;
11. Versions: Simplex / multimode; Simplex / singlemode; Simplex / singlemode APC 8°.
Product Classification
| Connector | Polish Type | Optical Properties | Reference Standard | |||
| SM | MM | |||||
| IL (dB) | RL (dB) | IL (dB) | RL (dB) | YD/T 1272.3-2005；IEC 60874-19-1 IEC 60874-14-5；IEC 60874-14-10 | ||
| SC | UPC | ≤0.35 | ≥50 | ≤0.20 | - | |
| APC | ≥60 | - | - | |||
| Operating Temperature(℃) | -40℃~+80℃ | |||||
| Storage Temperature(℃) | -40℃~+85℃ | |||||
| Fireproof standard | IEC 60332-3 | |||||
| RoHs 2002/95/EC directive | ||||||
| Regional Availability | China |
| Product Type | Fiber pigtail, multi-fiber |
| Color, boot A | White |
| Color, connector A | White |
| Jacket Color | White |
| Fiber Count | 1 |
| Nominal Diameter (mm) | 5.0 |
| Fiber Mode | Singlemode |
| Fiber Type | OS1 |
| ROHS | Compliant/Exempted |
Cable Parameter
|
Category |
Description |
Specifications |
||
|
Before cabling |
After cabling |
|||
|
Attenuation @1550 nm |
≤0.20 dB/km (max.) | ≤0.22 dB/km (max.) | ||
|
Attenuation @1625 nm |
≤0.23dB/km | ≤ 0.24 dB/km | ||
|
Zero Dispersion Wavelength |
≤1520 nm |
|||
|
Zero Dispersion Slope |
≤ 0.084 ps/nm2·km | |||
|
PMD Link value (M=20cables Q=0.01% ) maximum PMDQ |
≤0.08 ps/√km |
|||
|
Cable Cutoff Wavelength (λcc) |
≤1450 nm | |||
|
Macro bending Loss (1 turn; Ф32 mm) @1550 nm (100 turns; Ф60 mm) @1625 nm |
≤ 0.05 dB |
|||
|
Mode Field Diameter |
@1550 nm | 9.6±0.5μm | ||
|
Dimensional Specifications |
Cladding Diameter |
124.8 ±0.7μm |
||
|
Core/clad concentricity error |
≤0.6μm | |||
|
Cladding Non-Circularity |
≤1.0% | |||
|
|
Proof stress off line |
≥9.0 N |
||
Hangalaxy Exhibition Activities
Quality Control
Quality and standards are the foundation of Hangalaxy. We are dedicated to providing clients with the outstanding, standards-compliant products and services. Hanglaxy has passed many quality system verification, like ISO, RoHS, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
