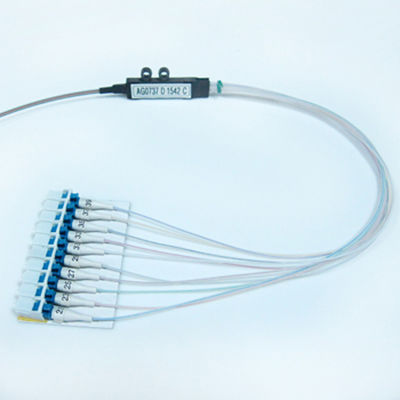

LSZH Fiber Optic Pigtails SC UPC Ribbon Fanouit Kits 0.9mm 12 Color Coded

  • LSZH Fiber Optic Pigtails SC UPC Ribbon Fanouit Kits 0.9mm 12 Color Coded
  • LSZH Fiber Optic Pigtails SC UPC Ribbon Fanouit Kits 0.9mm 12 Color Coded
  • LSZH Fiber Optic Pigtails SC UPC Ribbon Fanouit Kits 0.9mm 12 Color Coded
  • LSZH Fiber Optic Pigtails SC UPC Ribbon Fanouit Kits 0.9mm 12 Color Coded
Place of Origin China
Brand Name Hangalaxy
Certification CE, SGS, UL, RoHs
Model Number HGYN-0147
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 20000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cable OD 0.9mm Jacket LSZH
Cable Color Color-coded Connector SC
Polish Type UPC Fiber Count 12
Fiber Mode Singlemode Wavelength 1310nm
High Light

fiber optic pigtail splicing

,

patch cord pigtail
Leave a Message
Product Description

0.9mm 12 Color-coded Fiber Optic SC UPC Ribbon Fanouit Kits LSZH Pigtails



Hangalaxy provides 12F Ribbon Fan-out Fiber Optic Pigtail is a multi-fibers pigtail which made by Ribbon cable. The ribbon fiber fanout via a 1x12 fanout kit. The fanout cable can be 900μm or 2.0mm cable. Hangalaxy’s 4-12F Ribbon Fan-out Fiber Optic Pigtail are available in both single and multimode versions with either APC or UPC polish types. All of OMC pigtails are factory inspected and tested, with available interferometer data upon request.



Connector’s Standard



SC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.



Features


1. The connector could be SC,FC,LC,ST,MU,E2000 etc;
2. The cable could be G652D,G655,G657,OM1,OM2,OM3 etc;
3. Fiber count: 4.6.8.12.



Application



1. Local area networks (LAN);
2. Wide area networks (WAN);
3. CATV, metro test equipment;
4.Telecommunication networks;
5. Data processing networks;
6. Premise installations;
7. Video and military active device termination.



Technical Parameter



Fiber Type SM MM



Connector Tytpe

 MTRJ

D4, FC, SC, ST, LC,

E-2000, MU

D4, FC, SC, ST, LC,

E-2000, MU

 MTRJ
Insertion Loss (Typical) ≤0.4dB ≤0.2dB ≤0.4dB ≤0.2dB
Insertion Loss (Max) ≤0.5dB ≤0. 3dB ≤0.3dB ≤0.5dB



Return Loss (Typical)

 PC   ≥50dB
APC ≥65dB
UPC ≥55dB ≥55dB
Mating Durability ≤0.2dB
Durability ≥1000 times
Storage Temperature - 40～+ 85



OVERVIEW
Clad Diameter 125 Micron
Core Diameter 62.5 Micron
No. Of Fiber 2
Technology Mode Conditioning
Push/Pull Tabs No
Weight (Lbs) 0.09

WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty



Legend / Key
Connectors Fiber Modes Fiber Count Jacket Color Jacket Type UOM (Unit of Measure) Cable Diam Ø

D: SC/UPC

E: SC/APC

F: E2000

G: E2000/APC

H: FC/UPC

I: FC/APC

K: LC/UPC

L: LC/APC

S: ST/UPC

Y: MT-RJ

9: 9/125μm Single-mode

6: 6.25/125μm Multimode

7: 50/125μm OM3 Laser Optimized Multimode

4: 50/125μm OM4

2: 200/230μm Multimode

1: 100/140μm Multimode

P: Panda PM Fiber

B: Bowtie PM Fiber

E: Eliptical PM Fiber

S: Simplex (1 Fiber)

D: Duplex (2 Fiber)

Y: Yellow

O: Orange

A: Aqua

L: Blue

G: Green

E: Brown

S: Slate

W: White

R: Red

B: Black

U: Purple

P: Pink

R: Riser (OFNR)

P: Plenum (OFNP)

L: Low Smoke Zero Halogen (LSZH)

N: None

V: PVC Jacket

M: Meters

F: Feet

I: Inches

C: Centimeters

2: 2mm Jacket

3: 3mm Jacket

4: 900μm (.9mm)

6: 250μm Bare

7: 500μm Bare



LSZH Fiber Optic Pigtails SC UPC Ribbon Fanouit Kits 0.9mm 12 Color Coded 0



LSZH Fiber Optic Pigtails SC UPC Ribbon Fanouit Kits 0.9mm 12 Color Coded 1



LSZH Fiber Optic Pigtails SC UPC Ribbon Fanouit Kits 0.9mm 12 Color Coded 2



Quality Control



Quality and standards are the foundation of Hangalaxy. We are dedicated to providing clients with the outstanding, standards-compliant products and services. Hanglaxy has passed many quality system verification, like ISO, RoHS, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
