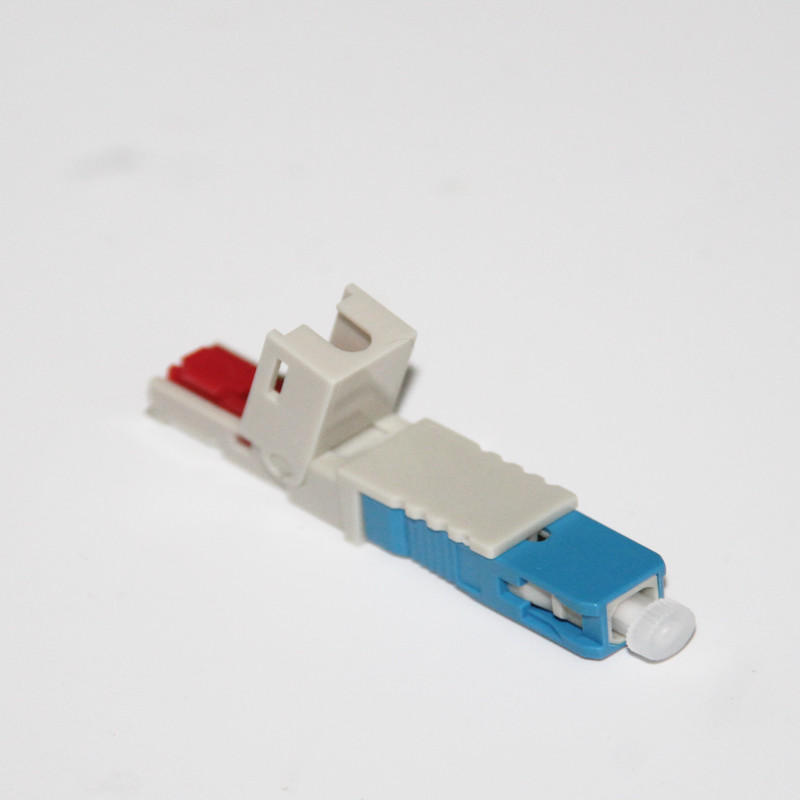

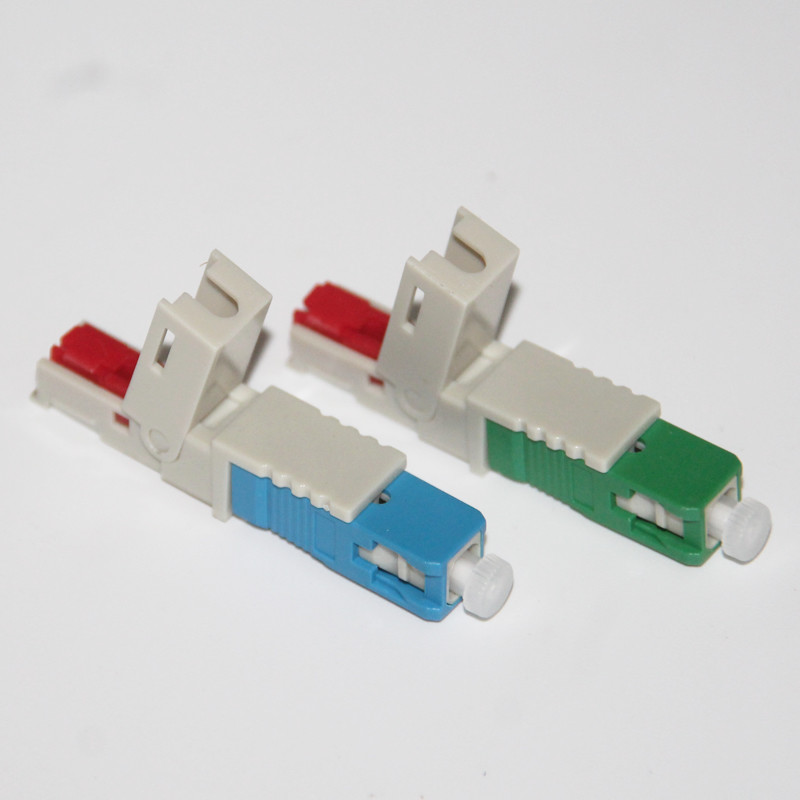

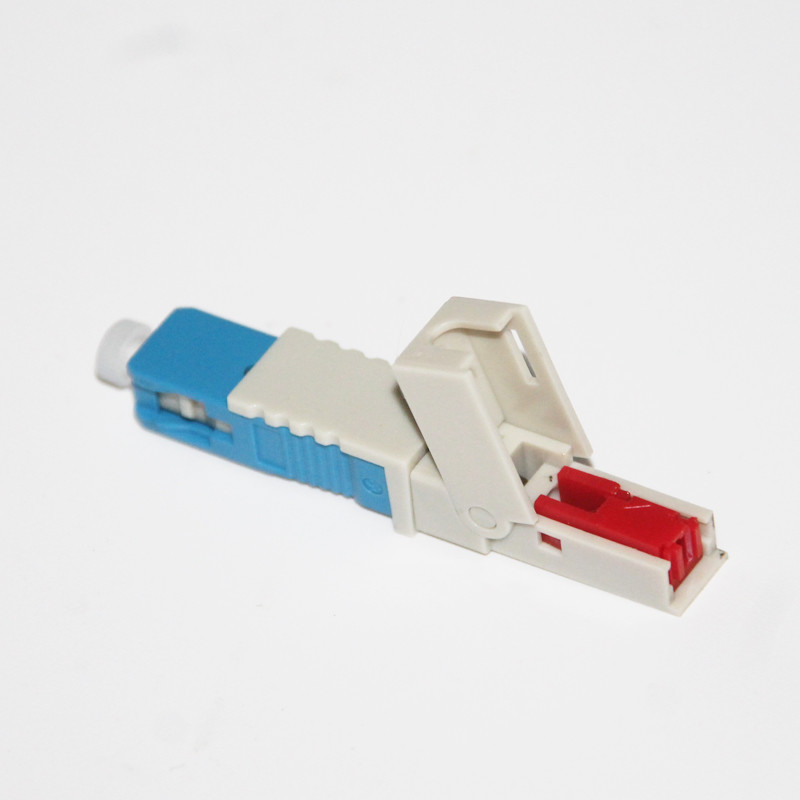

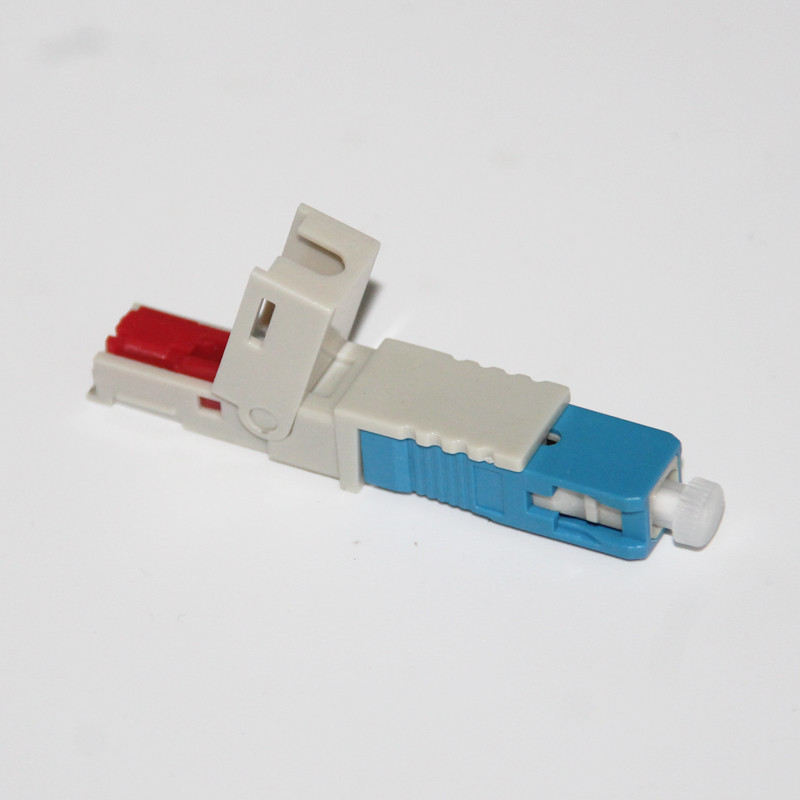

SC APC Field Assembly Connector Singlemode SOC Cameric Ferrule 2.0x3.0mm

  • SC APC Field Assembly Connector Singlemode SOC Cameric Ferrule 2.0x3.0mm
  • SC APC Field Assembly Connector Singlemode SOC Cameric Ferrule 2.0x3.0mm
  • SC APC Field Assembly Connector Singlemode SOC Cameric Ferrule 2.0x3.0mm
  • SC APC Field Assembly Connector Singlemode SOC Cameric Ferrule 2.0x3.0mm
Place of Origin China
Brand Name Hangalaxy
Certification CE, UL, FCC, RoHs
Model Number HGYN-990
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 25000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Plastic Fiber Mode Singlmode, OS2
Fiber Count 1 Cable OD 2.0x3.0mm
Color Blue Connector Type SC
Ferrule Cameric Length 10mm
High Light

sc apc fiber connector

,

fc apc fiber connector
Leave a Message
Product Description

3.0mm SC APC Singlemode SOC Fiber Optic Field Assembly Connector



Hangalaxy offers a board variety of fiber optic cable for all indoor access and structure cabling application such as simplex, duplex, tight buffer, distribution, breakout and ribbon cable. Fitting most of the indoor application environment , whatever for short distance cabling or premises structure cabling. G652D, G657A1/A2, OM1 62.5/125μm, OM2 50/125μm, OM3 and OM4 fibers are available. Hangalaxy also provides the customization service on the fiber, colours and construction of the cables for catering different cases.



Keyed Characteristics


● Patchcord preparation;
● Indoor short distance cabling;
● Small bending, light weight and highly flexible;
● Easy to Install and terminate;
● Flame retardant or LSZH jacket is available;
● Comply to TIA/EIA568b-3 and ISO/IEC11801.



Application


● Telecommunication networks;
● Wide Area Networks;
● Industrial, medical & military;
● Local Area Networks;
● Test equipment;
● Active device termination;
● Data processing networks.



Cable Technical Datasheet



No. Items Unit Specification
Single-mode
1 Mode Field Diameter 1310nm μm 9.2±0.4
1550nm 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter   μm 245±5
6 Coating Non-Circularity   % ≤6.0
7 Cladding-Coating Concentricity Error   μm ≤12.0
8 Cable Cutoff Wavelength   nm λcc≤1260
9 Attenuation(max.) 1310nm dB/km ≤0.4
1550nm dB/km ≤0.3
10 Fiber Type Corning SMF28-e



Technical Parameter



Cable Design
Fiber Count 1
Buffering Diameter 900μm
Tight Buffer Type Standard – strip up to 10cm or Easy strip
Tight Buffer Colour White (standard)
Tensile Strength Elements and/or Armored Layer 1 Aramid yarn
Outer Jacket Material

PVC/Flame-retardant, non-corrosive / low-smoke, zero-halogen

(FRNC / LSZH)
Outer Jacket Colour Yellow / Orange / Aqua
Outer Jacket Nominal Thickness 0.35mm



SC APC Field Assembly Connector Singlemode SOC Cameric Ferrule 2.0x3.0mm 0



SC APC Field Assembly Connector Singlemode SOC Cameric Ferrule 2.0x3.0mm 1



SC APC Field Assembly Connector Singlemode SOC Cameric Ferrule 2.0x3.0mm 2



Hangalaxy provides fast fiber optical pre-installed connector for both MultiMode as SingleMode fiber, compatible with most of today’s switch vendors. Hangalaxy’s Dual Fiber SFP’s support data ranges between 100 Mbit/s and 4.25 Gbps and distances up to 160 km. Go to the Hangalaxy SFP product range.
