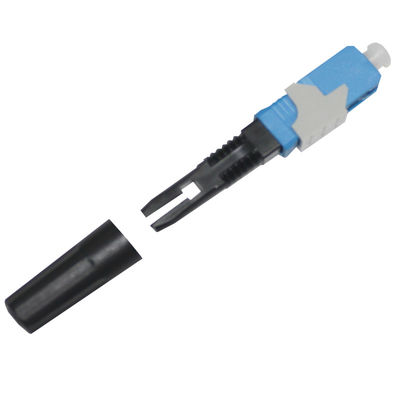

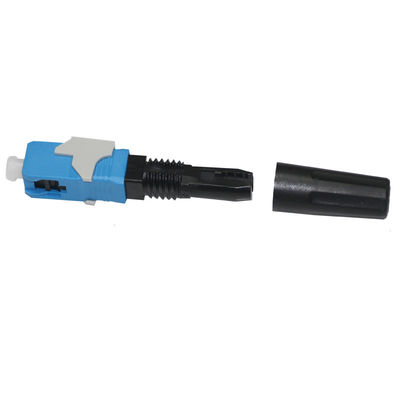

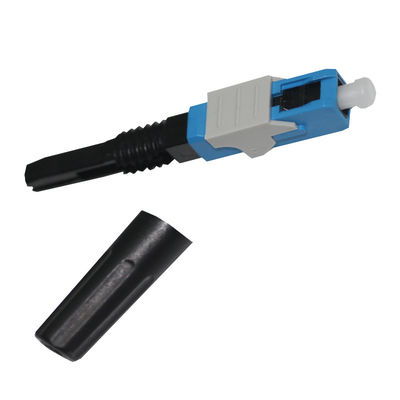

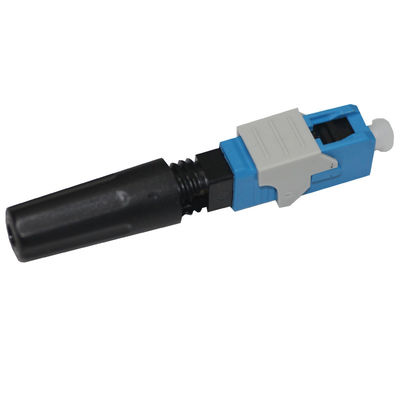

2.0x3.0mm SC UPC Fiber Optic Field Assembly Connectors 0.35dB Insertion Loss
| Place of Origin | China |
|---|---|
| Brand Name | Hangalaxy |
| Certification | CE, RoHs, FCC, UL, ISO9001 |
| Model Number | HGYN-1456 |
| Minimum Order Quantity | MOQ Saying is 10pcs |
| Price | egotiation By email or Phone Call |
| Packaging Details | 1PCS Each Individual Quality PE Bag |
| Delivery Time | 7-10 Business Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 25000PCS Monthly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector Type | SC | Fiber Mode | Singlemode, 9/125um |
|---|---|---|---|
| Fiber Count | 1 | Color | Blue |
| Material | Plastic | Insertion Loss | 0.35dB |
| Return Loss | 55dB | Polish Type | UPC |
| High Light | lc apc fiber connector,fc apc fiber connector |
||
Product Description
2.0x3.0mm SC UPC Fiber Optic Singlemode Field Assembly Fast Connectors
Hangalaxy supply SC/UPC fast connector are factory pre-polished, field-installable connectors that eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub, and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.
Features
1. Quick, easy, and clean solution for fiber terminating connectors.
2. Precision mechanical alignment ensures low insertion loss.
3. It can be installed within two minutes, including preparation time.
4. High success rate of connection, Superior optical performance.
5. Simple assembly process, convenient operation.
6. No epoxy and polishing required, reducing installation time.
7. Stable optical performance is achieved through its use of V-groove mechanical splice technology.
Technical Parameter
| Type | SC/APC |
| Fiber Count | Simplex |
| Insertion Loss | ≤0.3dB |
| Fiber Mode | 50/125MM |
| Return Loss | >30dB (UPC MM) |
| Boot Size | 2.0*3.0 drop cable |
| Housing | Green |
| Material | Plastic |
Short Details
| Part Number | HGYN-1455 |
| Polish Type | UPC |
| Lenght | 55mm |
Application
1. Telecom / Datacom;
2. LANs, CATV;
3. Fiber to the Home;
4. Premises Distribution;
5. Gigabit Applications (Ethernet, ATM, SONET, etc.
Assembly Manual
The field assembly connector can be assembled directly on the end of cable just within minutes. Which makes the installation process easy and fast. It requires no specialized tooling except standard fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. Even no electrical power supply is needed to assemble this fiber connector.
Hangalaxy Factory
FTTH Fast Connector Package:
The package will be packed according to standard export requirements, customer satisfication is our target.
Label printed: Customer logo or None brand are available
Inner packing: 10pcs/PE box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
