OM4 Fiber Optic Cassette Module 100G 24 Cores MPO To LC Multimode Black
| Place of Origin | China |
|---|---|
| Brand Name | Hanglaxy |
| Certification | CE, FCC, RoHs, SGS, ISO9001 |
| Model Number | HGYN-5544 |
| Minimum Order Quantity | MOQ Saying is 10pcs |
| Price | Negotiation By email or Phone Call |
| Packaging Details | 1PCS Each Individual Quality PE Bag |
| Delivery Time | 7 Business Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A |
| Supply Ability | 5055PCS Monthly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Mode | Multimode | Fiber Count | 24 |
|---|---|---|---|
| Connector Type | MPO | Polish Type | UPC |
| Color | Black | Material | Metal |
| Insertion Loss | 0.35dB | Wavelength | 850nm |
| High Light | mtp to mtp cable,fiber trunk cable,OM4 Fiber Optic Cassette |
||
Product Description

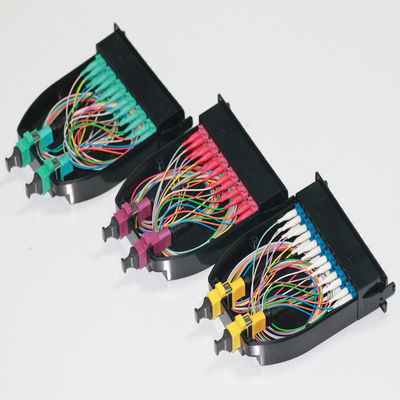

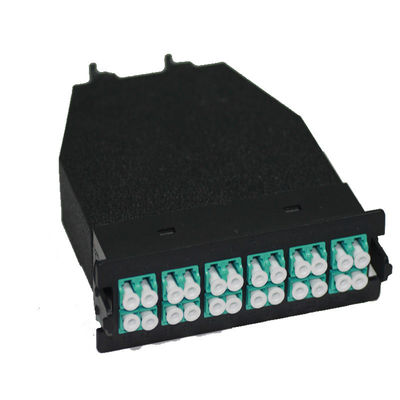

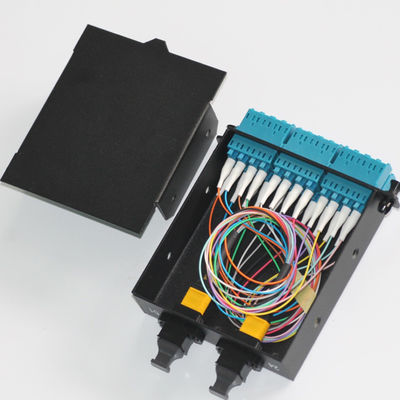

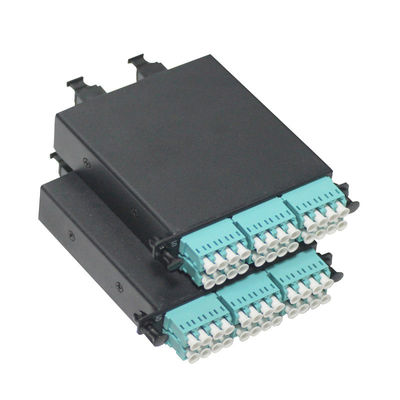

100G 24 Cores MPO to LC Multimode OM4 Fiber Optic Cassette Moodule
The MPO / MTP® module box is pre-termianted to increase the installation speed. The module box and the external MPO / MTP® port can be easily and efficiently connected to the main line. A single MPO / MTP® provides instant connection to 24 fibers. The Hangalaxy MTP® Solution is a premium grade, hyper high density 19” cassette and chassis system. It operates on similar lines to conventional networks, insomuch as a trunk cable, patch panels at each end and jumper cables patching to the operating hardware. Hangalaxy solutions provide a more efficient, condensed method – a tool-less and pluggable high density population fibre optic network, without the need for expensive on-site splicing and thus reducing installation time. Centred around its sleek injection moulded 24f cassette, the Hangalaxy Solution presents up to 96F in a 1U and up to 384f in a 4U space. With the full versatility of a modular system, the minimum investment is one 24F cassette into either a 1U or 4U chassis. This allows a buy and build approach as the network grows without demanding more valuable U space within a cabinet. LC Duplex adapters are colour coded for ease of fibre type recognition; aqua for OM3/OM4 and blue for single-mode. The sealed cassette contains premium grade fanouts; either 2x 12f or 1x 24f LC to MTP® elite on OM4 or single-mode fibre, according to choice. To the front of each cassette are two sliding pull tabs which are used to aid removal from the chassis. The pull tabs recess into the cassette for tidy storage. Each cassette is fitted with 4x spring-ball bearings which locate inside the chassis with an audible click on correct fitting. As the solution is designed for High Density applications, LC HD assemblies must be used in conjunction with the cassette. See our LC HD Switchable assembly datasheet for further detail.
Application
• Data centre fibre network infrastructure;
• High density fibre applications;
• Parallel Optics;
• Infiniband Compliant;
• 10G Fiber Channel Compliant;
• 40G and 100G IEEE 802.3;
• QFSP compatible.
Technical Detail
| Optical Performance |
MTP® Elite Multimode Connector |
LC Multimode Connector |
MTP® Elite Single-mode Connector |
LC Single-mode Connector |
| Insertion Loss |
0.35dB Typical (All Fibres) 0.50dB Max (Single Fibre) |
0.45dB Typical 0.50dB Max |
0.25dB Typical (All Fibres) 0.35dB Max (Single Fibre) |
0.25dB Typical 0.35dB Max |
| Return Loss | >30db | >30dB | >60dB | >55dB |
| Front Adapter Type | LC duplex x 12pcs, LC quad x 6pcs |
|
Front Adapter Color |
Aqua: OM3/OM4 Blue : SM/UPC Green: SM/APC |
| Connector A |
SM:LC/UPC 0.9mm, LC/APC 0.9mm or SC/UPC 0.9mm MM:LC/UPC 0.9mm |
| Connector B |
SM:MPO / MTP® (male) / APC MM MPO / MTP® (male) / PC |
| Polarity Type | Type A |
| Dimension | L×W×H(mm):111 x 101 x 90mm |
General Features
• MTP® Elite Connectivity Solutions;
• OM3/OM4 & OS2 fibre grades;
• 2x 12f or 1x 24f options;
• Method A polarity configuration;
• 100% NEATEL factory termination and tested for reliability;
• Fully compatible with NEATEL 1U and 4U chassis;
• Easy deployment – modular system saves installation time;
• Hyper high density -96f in 1U and 384f in 4U;
• 1.2mm Cold Rolled Steel good quality build up.
