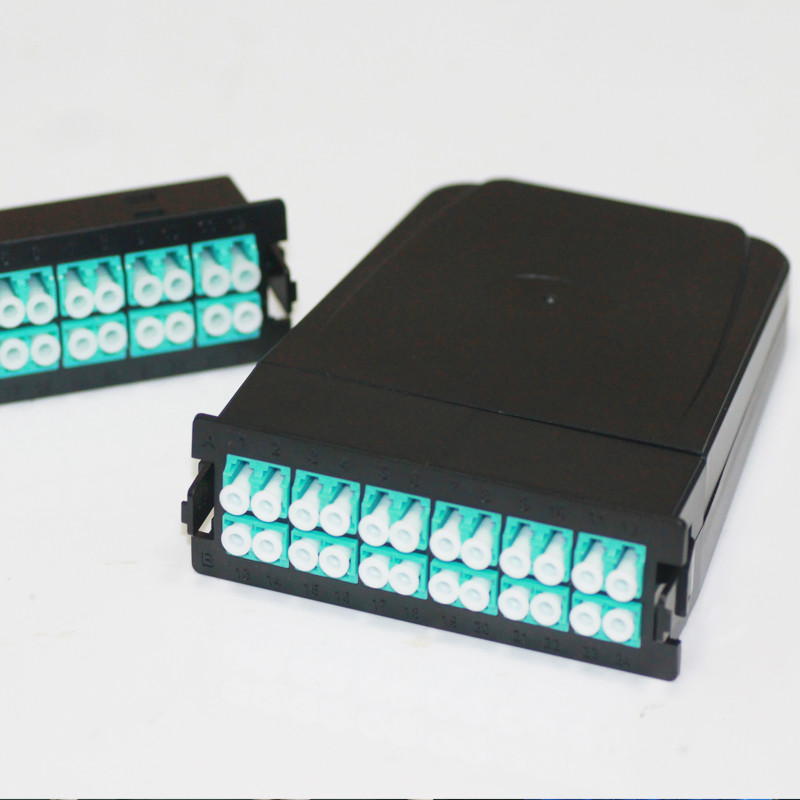

24F Optical MPO Cable Assemblies MTP to LC OM3 Cassette Modular Polarity A

  • 24F Optical MPO Cable Assemblies MTP to LC OM3 Cassette Modular Polarity A
  • 24F Optical MPO Cable Assemblies MTP to LC OM3 Cassette Modular Polarity A
  • 24F Optical MPO Cable Assemblies MTP to LC OM3 Cassette Modular Polarity A
  • 24F Optical MPO Cable Assemblies MTP to LC OM3 Cassette Modular Polarity A
Place of Origin China
Brand Name Hanglaxy
Certification CE, FCC, RoHs, SGS, ISO9001
Model Number HGYN-600
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability 5055PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Mode Multimode Fiber Count 24
Connector Type MTP Polish Type UPC
Color Black Material Metal
Insertion Loss 0.35dB Wavelength 850nm
High Light

mpo cassette patch panel

,

fiber trunk cable

,

MTP to LC OM3 Cassette
Leave a Message
Product Description

24F Optical Fiber Optic MTP to LC Multimode OM3 Cassette Modular, Polarity A



The Hangalaxy Fiber MTP LGX Cassette that provides secure transition between MTP and LC discrete connectors, and comes pre-terminated with 12 LC connections on the front side and one 12 fibers MTP connector at the rear. Inside the MTP cassette there is one 12 fibers harness that breakout from the LC connector to the MTP connector, giving a quick and easy plug-and-play data solution.



Feature


1. Eliminate termination errors, Min installation time;
2. Each cable is 100% tested for low insertion loss and back reflection;
3. Optimized performance - Elite MTP and discrete premium connector;
4. Support 40G PLRL4 PSM in applicable parallel optics networks;
5. Compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard.



Applications


1. Factory terminated and 100% tested;

2. Elite insertion loss of 0.35dB maximum;

3. Available with LGX Fiber Enclosure;

4. Data Center Solution;

5. Storage Area Network;

6. Main and Equipment Distribution Areas.



Technical Detail



Optical Performance

MTP® Elite Multimode

Connector

LC Multimode

Connector

MTP® Elite Single-mode

Connector

LC Single-mode

Connector
Insertion Loss

0.35dB Typical (All Fibres)

0.50dB Max (Single Fibre)

0.45dB Typical

0.50dB Max

0.25dB Typical (All Fibres)

0.35dB Max (Single Fibre)

0.25dB Typical

0.35dB Max
Return Loss >30db >30dB >60dB >55dB



Front Adapter Type LC duplex x 12pcs, LC quad x 6pcs



Front Adapter Color

Aqua: OM3/OM4

Blue : SM/UPC

Green: SM/APC
Connector A

SM:LC/UPC 0.9mm, LC/APC 0.9mm or SC/UPC 0.9mm

MM:LC/UPC 0.9mm
Connector B

SM:MPO / MTP® (male) / APC

MM MPO / MTP® (male) / PC
Polarity Type Type A
Dimension L×W×H(mm):111 x 101 x 90mm

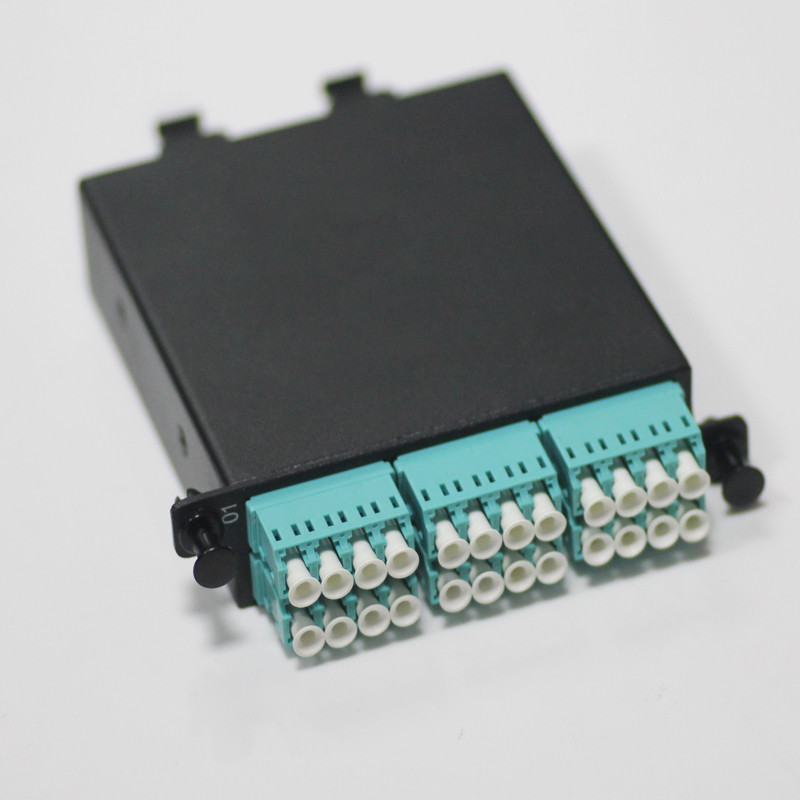

24F Optical MPO Cable Assemblies MTP to LC OM3 Cassette Modular Polarity A 0

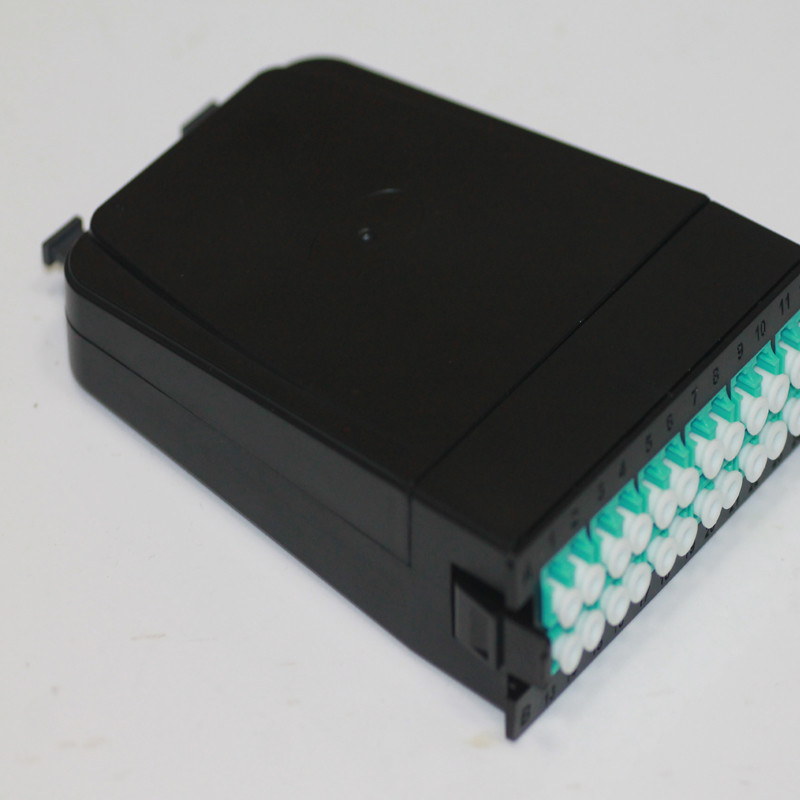

24F Optical MPO Cable Assemblies MTP to LC OM3 Cassette Modular Polarity A 1

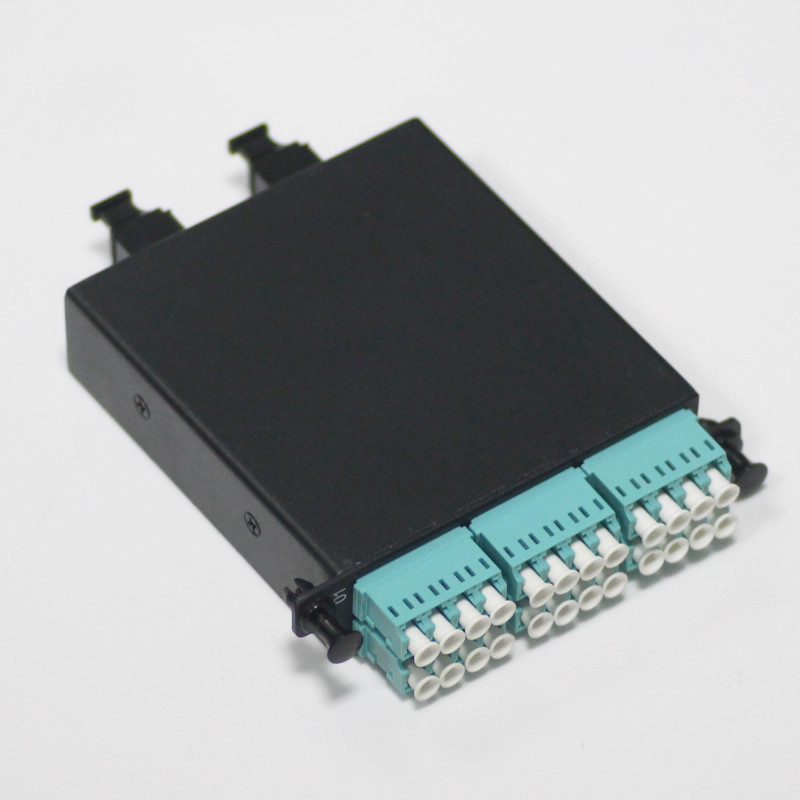

24F Optical MPO Cable Assemblies MTP to LC OM3 Cassette Modular Polarity A 2



General Features


• MTP® Elite Connectivity Solutions;
• OM3/OM4 & OS2 fibre grades;
• 2x 12f or 1x 24f options;
• Method A polarity configuration;
• 100% NEATEL factory termination and tested for reliability;
• Fully compatible with NEATEL 1U and 4U chassis;
• Easy deployment – modular system saves installation time;
• Hyper high density -96f in 1U and 384f in 4U;
• 1.2mm Cold Rolled Steel good quality build up.
