24F MPO To LC Fiber Optic MPO MTP Cable OM4 Cassette Module For Data Center

  • 24F MPO To LC Fiber Optic MPO MTP Cable OM4 Cassette Module For Data Center
  • 24F MPO To LC Fiber Optic MPO MTP Cable OM4 Cassette Module For Data Center
  • 24F MPO To LC Fiber Optic MPO MTP Cable OM4 Cassette Module For Data Center
  • 24F MPO To LC Fiber Optic MPO MTP Cable OM4 Cassette Module For Data Center
Place of Origin China
Brand Name Hanglaxy
Certification CE, FCC, RoHs, SGS, ISO9001
Model Number HGYN-602
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability 5055PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Mode Multimode Fiber Count 12
Connector Type LC Polish Type UPC
Color Black Material Metal
Insertion Loss 0.35dB Wavelength 850nm
High Light

mtp to mtp cable

,

fiber trunk cable

,

OM4 Fiber Optic Cassette
Leave a Message
Product Description

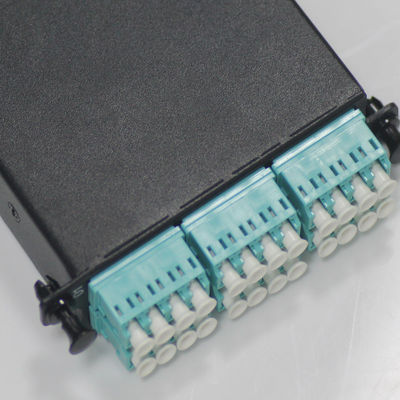

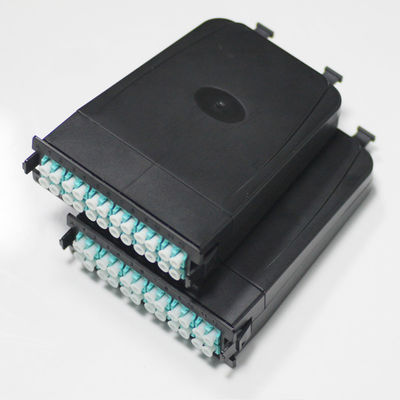

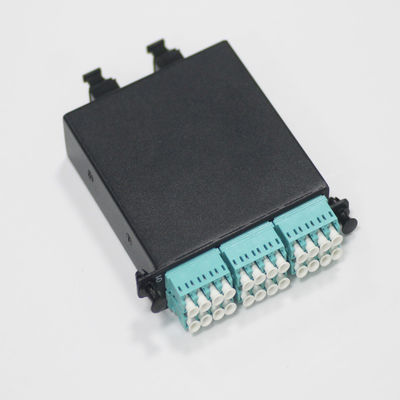

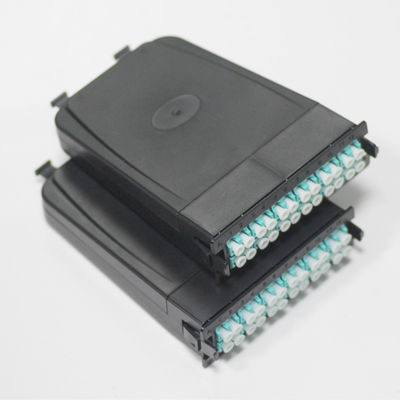

24F Fiber Optic MPO to LC Multimode OM4 Cassette Module for Data Center



The Hangalaxy MPO Fiber Optic Cassette Module is designed for the secure transition between MPO and LC discrete connectors. It’s suitable for high-density backplane and data center cabling which offers excellent benefits in terms of on-site installation time and space saving. This Fiber Optic Cassette Module kit includes 2x pre-terminated MPO-12 to 12x LC Duplex 50/125 40G OM4 fiber optic harness cable, two MPO adapters in back, 12x LC duplex adapters in the front and the cassette module that the fiber is routed and connected inside of it. The MPO cassette module is built with high-quality components to ensure overall network reliability. This compact and modular MPO cassette module provide you a quick, reliable, high performance and efficient way to deploy up to 12x LC duplex fiber ports pairs in a single module, allowing for maximum density in limited spaces. The cassette module can be mounted in 1U, 2U, 3U or 4U 19” multi-slot MPO fiber panel or enclosure.



Feature



• Factory-terminated provide consistent quality, high performance and reduce installation time;
• 100% tested for low insertion loss performance and high return loss;
• Simplifies cable management and allows for higher density;
• Suitable for MPO application;
• 40GB 50/125 multimode OM4 fiber;
• Cassettes can be easily mounted on the patch panel, designed for MPO/MTP ultra high-density panel system;
• Easy to use and install;
• RoHS compliant.



Applications


• Data Centre Infrastructure;
• Storage Area Network-Fiber Channel;
• Emerging 40 & 100Gps Protocols.



Technical Detail



Type and Color

Code Connectors

Insertion

Loss (IL)

Optical

Return Loss (RL)

Operating

Temperature
Multimode MTP® /MPO Standard Connector 0.35 dB Typical (All Fibers) 0.75 dB Maximum (Single Fiber)1,3

> 45 dB

(0°Flat Polished)2,3

 -40℃ to 75℃

1 IL test according to IEC 61300-3-4;

2 RL test according to IEC 61300-3-6;

3 Tested with proposed encircled flux launch condition on 50μm fiber & 850nm per IEC 61280-4-1.



Optical Performance

MTP® Elite Multimode

Connector

LC Multimode

Connector

MTP® Elite Single-mode

Connector

LC Single-mode

Connector
Insertion Loss

0.35dB Typical (All Fibres)

0.50dB Max (Single Fibre)

0.45dB Typical

0.50dB Max

0.25dB Typical (All Fibres)

0.35dB Max (Single Fibre)

0.25dB Typical

0.35dB Max
Return Loss >30db >30dB >60dB >55dB



Front Adapter Type LC duplex x 12pcs, LC quad x 6pcs



Front Adapter Color

Aqua: OM3/OM4

Blue : SM/UPC

Green: SM/APC
Connector A

SM:LC/UPC 0.9mm, LC/APC 0.9mm or SC/UPC 0.9mm

MM:LC/UPC 0.9mm
Connector B

SM:MPO / MTP® (male) / APC

MM MPO / MTP® (male) / PC
Polarity Type Type A
Dimension L×W×H(mm):111 x 101 x 90mm



24F MPO To LC Fiber Optic MPO MTP Cable OM4 Cassette Module For Data Center 0



24F MPO To LC Fiber Optic MPO MTP Cable OM4 Cassette Module For Data Center 1



24F MPO To LC Fiber Optic MPO MTP Cable OM4 Cassette Module For Data Center 2



General Features


• MTP® Elite Connectivity Solutions;
• OM3/OM4 & OS2 fibre grades;
• 2x 12f or 1x 24f options;
• Method A polarity configuration;
• 100% NEATEL factory termination and tested for reliability;
• Fully compatible with NEATEL 1U and 4U chassis;
• Easy deployment – modular system saves installation time;
• Hyper high density -96f in 1U and 384f in 4U;
• 1.2mm Cold Rolled Steel good quality build up.

Tags:

fiber trunk cable

mpo cassette patch panel

mtp to mtp cable
