FBG 1650nm Monodirectional LC APC Optical Reflector Filter

  • FBG 1650nm Monodirectional LC APC Optical Reflector Filter
Place of Origin Shenzhen China
Brand Name Hangalaxy
Certification CE, SGS, ISO9001:2017, RoHs, FCC
Model Number HG-982
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 25000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wavelength 1650nm Connector Type LC
Polish Type APC Color Green
Insertion Loss 0.35dB Reflection Band 1644.5 - 1655.5nm
Ripple 0.6dB PDL 0.4dB
High Light

LC APC Optical Reflector Filter

,

Monodirectional Optical Reflector Filter

,

1650nm FBG Optical Reflector
Leave a Message
Product Description

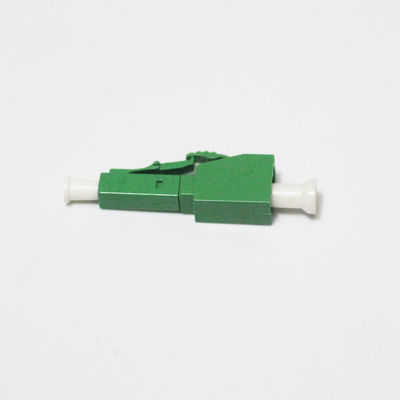

1650nm Monodirectional LC APC FBG Optical Reflector Filter, Green Housing



Fiber Laser Gratings are typically produced using double-clad fiber. They are generally used in pairs, including a high reflectance grating (Greater than 99.9%) and a low reflectance grating (10-20%), with a gain fiber between the two fiber gratings. The pump light propagates between the core and the inner cladding and the seed light propagates only in the core. The seed light is amplified by the grating for multiple oscillations, and output from the low reflectance fiber grating direction. The double-clad fiber for making 1060nm fiber laser grating is a single-mode fiber, which can ensure good beam quality and pump efficiency, generally up to tens of watts or even hundreds of watts.



Keyed Characteristics


(1) High Stability and Reliability.
(2) Low Coupling Loss and Compact Size.
(3) Less Heat, Faster Heat Dissipation.
(4) High Beam Quality.
(5) Compliant with Telcordia GR-1221-CORE.
(6) Compliant with RoHS.



Technical Parameter



Item Parameter Specification Unit Remarks
1 Wavelength Range Pass Band 1260~1625 nm -
Reflect Band 1645-1670 nm -





2





Pass Band



IL

 ≤0.8 dB @1260~1360
≤0.8 dB @1460~1600
≤1.0 dB @1600~1625



ORL

 >35 dB @1260~1580
>30 dB @1580~1620
>20 dB @1620~1625
3 Reflect Band IL >21 dB @1644.5~1655.5
ORL ≤1.0 dB @1644.5~1655.5
4 PDL ≤0.4 dB @1260~1600
5 Ripple ≤0.6 dB @1644.5~1655.5
6 TDL ≤0.5 dB @1260~1600
7 Max Power Optical Handling 27 dBm -
8 Plug Time >500 Times -
9 Connector Mode SC/APC - -
10 Transmission Direction Bidirectional



Application



The reflector object of this document is intended to be used on the network with the aim to allow the OTDR system Huawei N2510 to operate without reduction of performance.
