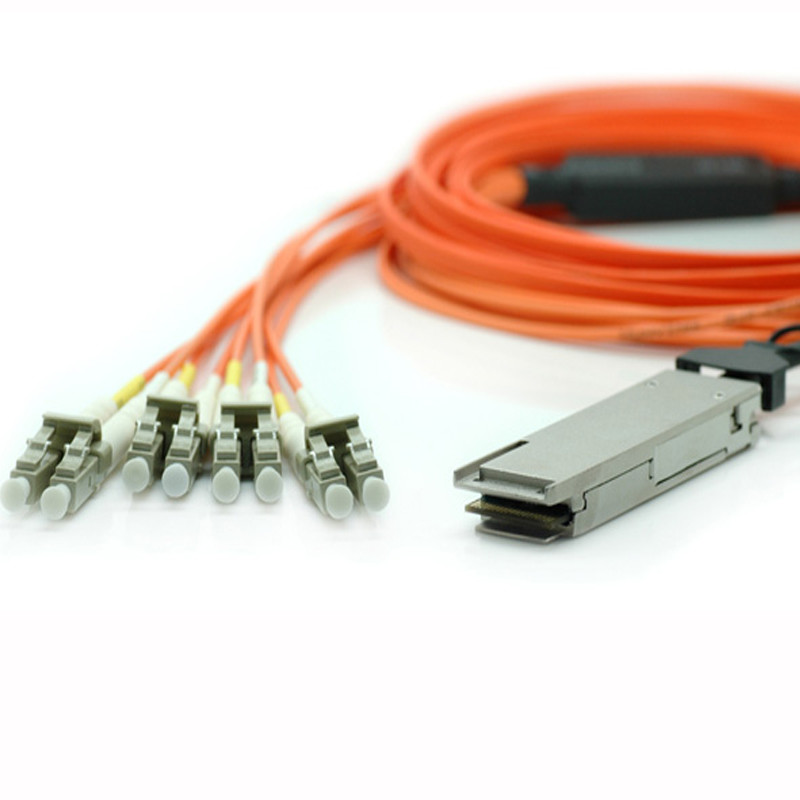

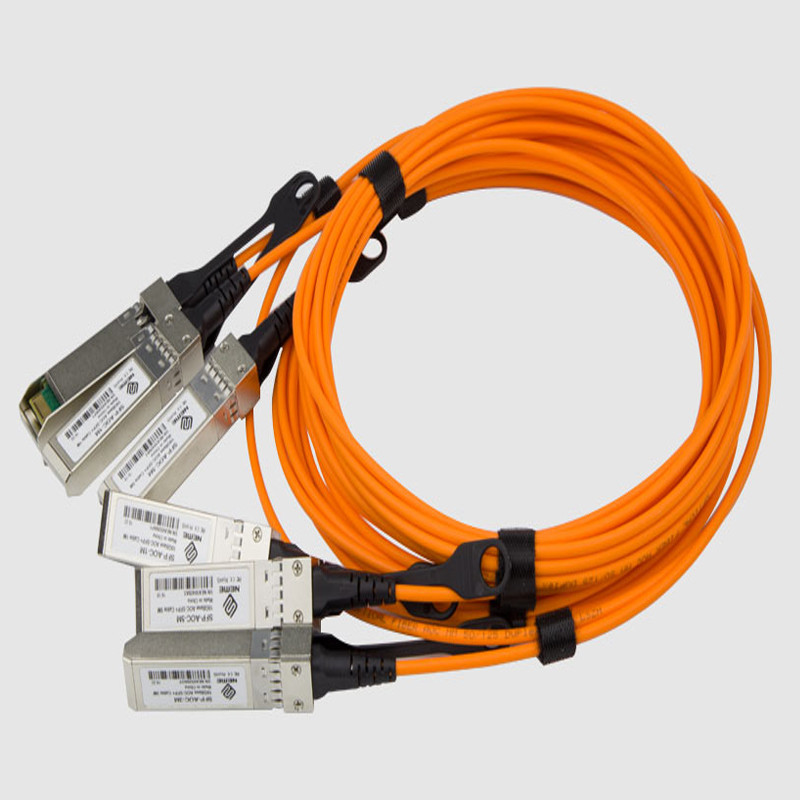

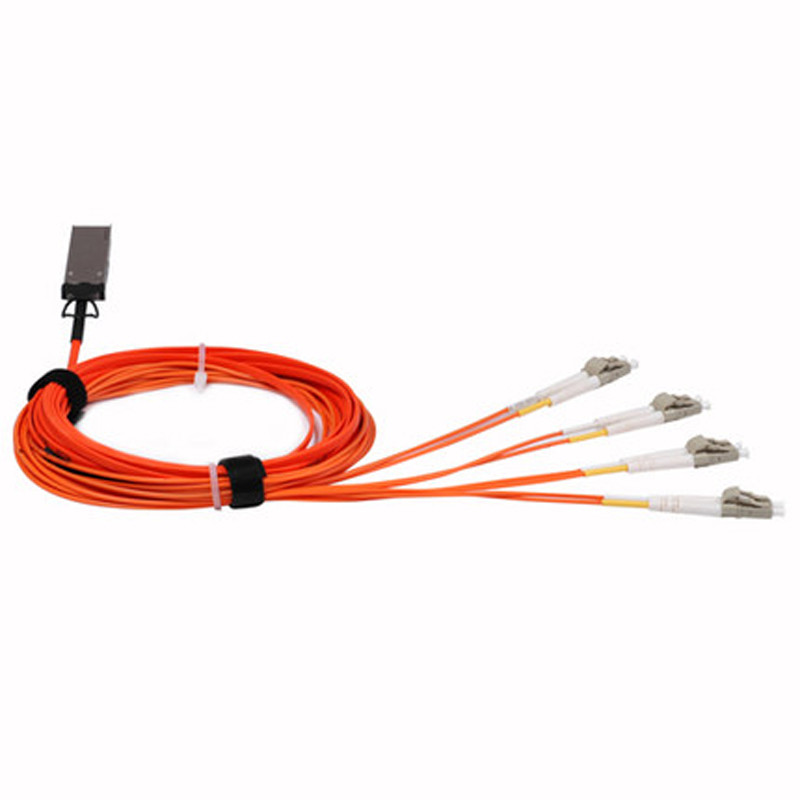

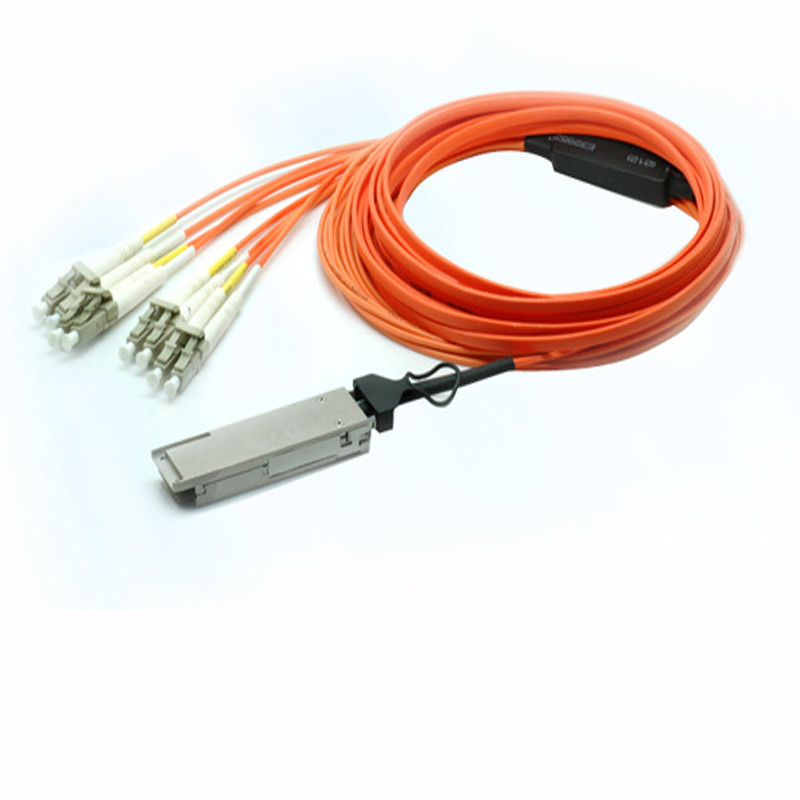

Hangalaxy OFNP QSFP+ Active Optical Cable Cisco QSFP H40G AOC2M Compatible

Cisco QSFP-H40G-AOC2M Compatible 40G QSFP+ Active Optical Cable, OFNP Cable

Active Optical Cable (AOC) is a cabling technology that accepts same electrical inputs as a traditional copper cable, but uses optical fiber “between the connectors”. AOC uses electrical-to-optical conversion on the cable ends to improve speed and distance performance of the cable without sacrificing compatibility with standard electrical interfaces. Hangalaxy SFP28 Active Optical Cables are direct-attach fiber assemblies with SFP28 connectors. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. This 25Gbps 850nm Multimode SFP28 Active Optical Cable is a single-Channel, Pluggable, Fiber-Optic SFP28 for 25 Gigabit Ethernet and Infiniband EDR Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 25.78125 Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 20 contact edge type connector.

Keyed Characteristics

● Hot-pluggable SFP28 form factor;
● Supports 25Gbps data rate;
● Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF;
● 850nm VCSEL laser and PIN photo-detector;
● Holder with guiding (air-/water-cooled);
● Internal CDR on both Transmitter and Receiver channel;
● Single 3.3V power supply;
● Power dissipation < 1W;
● Digital diagnostics functions are available via the I2C interface;
● RoHS-6 compliant;
● Commercial case temperature range: 0°C to 70°C.

Applications

● 25GBASE-SR Ethernet;
● InfiniBand QDR, SDR, DDR;
● Servers, switches, storage and host card adapters.

Absolute Maximum Ratings

Recommended Operating Conditions

Transmitter
