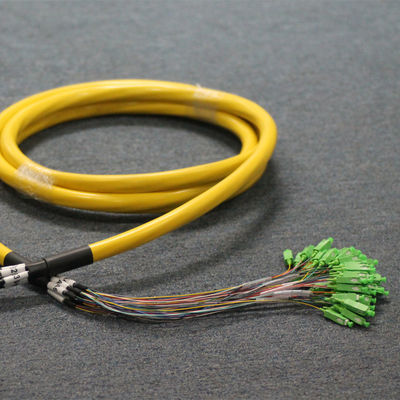

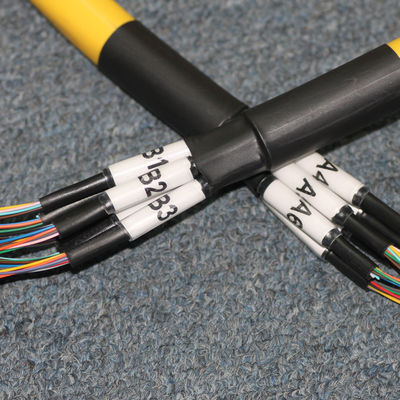

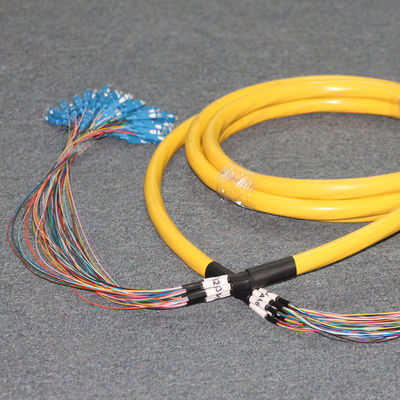

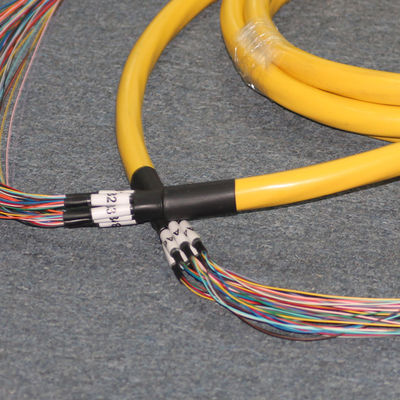

96 Cores Pre Terminated Fiber Optic Cable SC End OS2 Singlemode 0.9mm
Place of Origin | China |
---|---|
Brand Name | Hangalaxy |
Certification | CE, ROHS, UL, SGS |
Model Number | HGYN-089 |
Minimum Order Quantity | MOQ Saying is 10pcs |
Price | Negotiation By email or Phone Call |
Packaging Details | 1PCS Each Individual Quality PE Bag |
Delivery Time | 7-10 Business Days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 25055PCS Monthly |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFiber Count | 96 | Jacket Color | Yellow |
---|---|---|---|
Cable OD | 17.5mm | Cable Material | LSZH |
Connector Type | SC APC | Polishing | UPC |
Wavelength | 1310/1550nm | Insertion Loss | 0.35dB |
High Light | pre terminated outdoor fiber,lszh patch cord |
96 Cores Fiber Optic SC End OS2 Singlemode 0.9mm Pre-connectorized Cable
Item Overviews
We provide a complete line of high performance pre-connectorized multi-fiber trunk cable assemblies, with its time efficient and cost effective rather than on field termination or splicing, and they are becoming popular for many fiber installation projects. The easily fiber identification, it allows to make the simply laying the cable and do the rapidly patching. A pulling eye is optional on the pulling end of all trunks to safeguard fibers during installation, it attached around one end of the trunk cable as a protective sleeves, suits the safely pulling the cable through floors, ceilings and walls. The Breakout Trunk Cables are available with 6, 8, 12, 16, 24, 36 and 48 fiber counts with individual 2.0mm typical sub-cable inside the outer jacket, pre-connectorized with a wide variety of connectors and fibers at any length, custom breakout cable structure upon request for your unique applications. All our pre-connectorized multi-fiber trunk cable assembly products are designed to meet or exceed EIA/TIA, IEC and Telcordia standards for performance and reliability.
Feature
(1) 100% tested on optical performance (Insertion Loss;
(2) Customer specified length & Return Loss);
(3) Standard colour is Yellow, Orange, Aqua or Purple, other colours available upon request.
Benefits
• Breakout cable, individual 2.0mm typical sub-cable;
• Available in 6, 8, 12, 16, 24, 36 and 48 or custom fiber counts;
• High strength aramid yarn cable strength member;
• Available in OM1, OM2, OM3, OM4 and OS2 fibre types;
• RoHS compliant – Riser, Plenum, and LSZH rated cables available;
• Eliminate time and labor cost for field termination;
• 100% factory tested;
• Custom configurations available upon request.
Cable Performance
FibreType (ISO/IEC 11801) | OS1/OS2 | OM1 | OM2 | OM3 | OM4 |
Attenuation Coefficient [dB/km] | ≤ 0.38 Max (1310nm) ≤ 0.25 Max (1550nm) ≤ 0.34 Typ (1310nm) ≤ 0.19 typ (1550nm) | ≤ 3.5 Max (850nm) ≤ 1.5 Max (1300nm) ≤ 2.9 Typ (850nm) ≤ 1.2 typ (1300nm) | ≤ 3.5 Max (850nm) ≤ 1.5 Max (1300nm) ≤ 2.7 Typ (850nm) ≤ 0.9 typ (1300nm) | ||
Minimum Bandwidth: Overfilled Launch [Mhz-km] | NA | ≥ 200 (850nm) ≥ 500 (1300nm | ≥ 500 (850nm) ≥ 500 (1300nm) | ≥ 1500 (850nm) ≥ 500 (1300nm) | ≥ 3500 (850nm) ≥ 500 (1300nm |
Minimum Bandwidth: Laser Effective Modal Bandwidth [Mhz-km] |
NA |
NA |
NA |
≥ 2000 (850nm |
≥ 4700 (850nm) |
Connector Performance
CONNECTOR MATING | IL Average Standard | IL MAX Standard | IL Average Premium | IL MAX Premium | RETURN LOSS |
Multimode | 0.15 dB | 0.30 dB | 0.08 dB | 0.15dB | NA |
Singlemode | 0.18dB | 0.30dB | 0.12dB | 0.15dB | >55/65dB |
CABLE | YELLOW FANOUT SINGLE-MODE | ||
Applicable standards | CEI/EN 60793 | ||
CONSTRUCTION PERFORMANCE | |||
Pulling load resistance (N) | 4-6 fo: 600 / 800 | 8 – 12 – 16 fo: 1.000 / 1.500 / 2000 | 18 - 48 fo: 2.000 / 2.500 |
Crush resistance (N/cm) | Da 200 a 250 | ||
Static bending radius (mm) | 10 times x outer diameter | ||
Dynamic bending radius (mm) | 20 times x outer diameter | ||
Temperature (°C) | -20 / +80 | ||
Installing temperature (°C) | -10 / +60 | ||
Temperature (°C) | -20 / +80 | ||
MATERIALS | |||
Outer sheath | LSZH (yellow RAL 1018) | ||
External sheath of single fiber | LSZH (yellow RAL 1018) | ||
Secondary sheath of single fiber | Nylon - SEMITIGHT | ||
Strenght member | Aramid yarns | ||
FIBER | |||
SM - 9/125 | SMF-28e | ||
CONSTRUCTION FEATURES | |||
Number of fibers | 12 | 24 | 48 |
Outer diameter (mm) | 3.0mm | 4.5mm | 10.5 |
Weight (kg/km) | 20 | 34 | 56 |
Single fiber external diameter (mm) | 0.9 ±0,1 | ||
Connectors | Standard of LC, ST, FC, SC etc. |
Hangalaxy PLC Splitter Workshop
Hangalaxy Exhibition Activities Show
Pulling Eye Recommendations
Optional pulling eyes are highly recommended. The pulling eye pulling eye (and associated cable netting) will protect the pre-terminated ends during the pull. In many cases, pulling is not done from point to point, but rather from an intermediate point pulling back in each direction to each termination location. In that scenario, you will need to order the cable with two pulling eyes. In many cases, a cable run is planned to pull direct from point to point. When the installation begins, occasionally, the decision is made to pull from an intermediate point rather than from point to point (in which case you'll be glad that you ordered the extra pulling eye).
